Location：Home > Products > AC POWER SOURCE > Aviation Power APA5000 Series

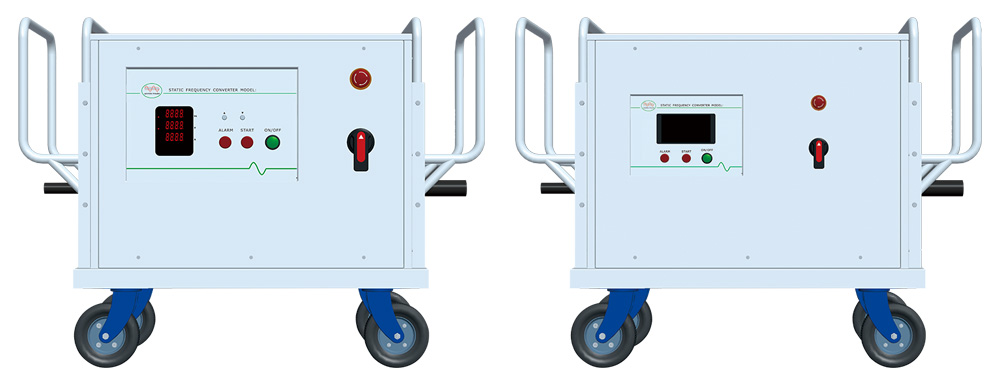

Aviation Power APA5000 Series(AC)

Product parameter
? LED / LCD display, clear and intuitive
? Higher power density, smaller size, lighter weight, space saving and easy to move
? The protection level is as high as IP54, and the whole machine parts are treated with three preventive measures. working temperature-40℃~50℃
? There are two types of aircraft, vertical type and Trailer type, which are convenient for airport/hangar moving or fixed-point use.
? Excellent overload capability and optional extended overload function
? More detailed protection function, can detect under-voltage/over-voltage, over-current, over-load, over-temperature, short circuit and other fault states.
? Inspection of temperature and humidity in the machine to ensure the normal use of power supply
? Three-phase power supply can withstand three-phase unbalanced load: 120° +1°; 30% unbalanced load 120° +1.5°; 100% unbalanced load 120° +2°.

Online quote

Product details

High Performance
? Optional dual output, suitable for multi-load applications
? Quick stop output with emergency stop button
? With EF signal interlocking function

APA5000（AC）Single phase series

Model	5000	5001	5002	5003	5005	5015	5020	5030
Output Capacity	500VA	1KVA	2KVA	3KVA	5KVA	15KVA	20KVA	30KVA
Input Power	1?2W+G 110V/220V±10%						3?4W+G 220V/380V±10%
Input Power	50/60Hz±3Hz
Output Frequency	Vertical/trailer type 300~ 500Hz 400Hz? (Special frequencies are customized)
Output Voltage	115V/220V±10%(Special Voltage Accepts Customization) Resolving power 0.1V accuracy 0.5%F.S.+4counts
Output current	4.2/2.1	8.4/4.2	16.8/8.4	25/12.5	42/21	126/63	168/84	250/125
Output current	Resolving power0.01A（500VA,1KVA) 0.1A(1KVA以上)? accuracy 0.2%F.S.+4counts
Load Regulation	≤1%(Resistive load)							≤1.5% (Resistive load)
Waveform Distortion	≤2%(Resistive load)							≤3% (Resistive load)
Meter Display	LED/LCD Display
Protective Device	Input and output are equipped with no fuse switch, overload, over-current, temperature, short circuit, over-voltage/under-voltage protection and alarm
Overload capacity	120%（1H）150%（1M）200%（15S）Other specifications are optional (According to 25% work cycle Duty Cycle Test results）
Weight（kg）	20	25	30	35	45	190	240	3500
WHD（mm）	42589480		430200500			430580700		6001260700
Working condition	ambient temperature -40℃~50℃ relative humidity 0~90% (Non-condensable)

APA5000S（AC）Three phase series

Model	5015S	5020S	5030S	5045S	5060S	5075S	5100S	5120S
Output Capacity	15KVA	20KVA	30KVA	45KVA	60KVA	75KVA	100KVA	120KVA
Input Power	3?4W+G 220V/380V±15%
Input Power	50/60Hz±3Hz
Output Frequency	400Hz（Trailer type）/300~ 500Hz （Vertical type）Resolving power 0.01Hz accuracy±0.02%F.S.
Output Voltage	115/200V±15V Resolving power 0.1V accuracy 0.5%F.S.+4counts
Output current	42/21	54/27	84/42	126/63	168/84	210/105	278/139	333/166
Output current	Resolving power 0.1A? accuracy 0.5%F.S.+4counts
Load Regulation	≤1%（Resistive load）
Waveform Distortion	≤2% (Resistive load)
Meter Display	LED/LCD Display
Protective Device	Over-voltage/under-voltage phase-gap protection and alarm with overload, over-current and over-temperature short circuit
Overload capacity	125%（600S）150%（30S）200%（10S）Other specifications are optional
（kg）Weight	210	230	270	360	450	540	600	800
（mm）WHD	510780710		6001260700			7501500850		9001780950
Working condition	ambient temperature -40℃~50℃ relative humidity 0~90% (Non-condensable)
